APP:

V380 Pro

System structure:

Embedded Linux system, ARM chip structure

Chip:

AK3918E

Resolution:

2.0MP

Sensor Resolution:

1/2.9"COMS SC2232H/GC2063 1080*1080

Lens

Fisheye lens (1.35±3%mm)

Lens view angle

360°

View angle:

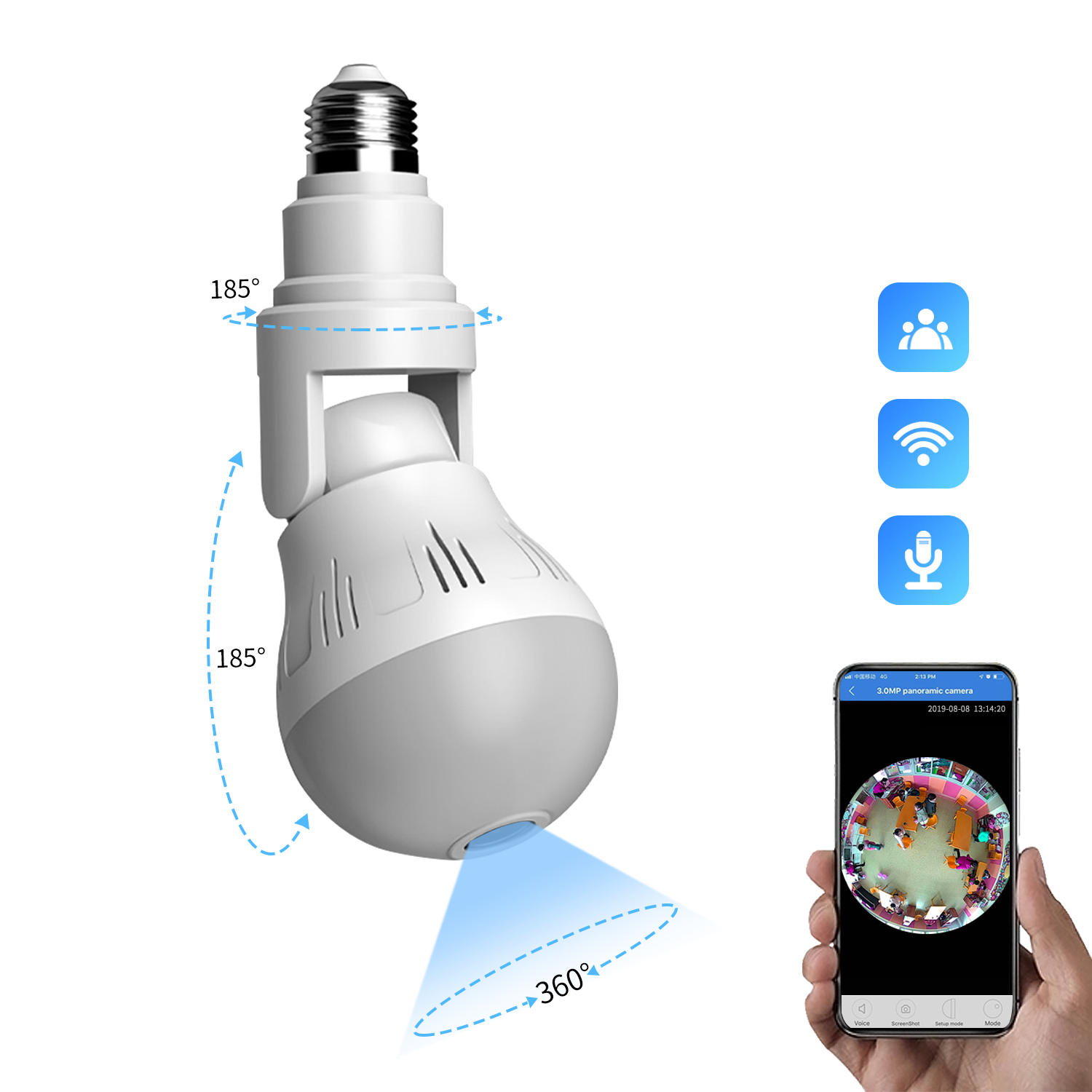

Horizontal: 185°/ Vertical:185°

Video compression standard:

H.265/20FPS

Minimum illumination:

0.02Lux@（F2.0，VGC ON),O.Luxwith IR

Electronic shutter:

Auto

Backlight compensation:

Support

Noise reduction:

2D、3D

LED quantity:

3pcs white LED + 3PCS infrared LED

Network:

WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).

Network connection:

WIFI ,AP Hotspot

Night vision

IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:1.Turn ON 2.Turn OFF3. Auto (In automatic mode, the infrared light will be turned ON after
the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light
intelligently )

Audio:

Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream

Network protocol:

TCP/IP、UDP、HTTP
DDNS、DHCP、FTP、NTP

Alarm:

1.Motion detection and picture push 2.AI Human intrusion Detection (optional)

ONVIF

Support ONVIF

Storage:

TF Card（Max 128G）；Cloud storage /Cloud disk (optional)

Connection port:

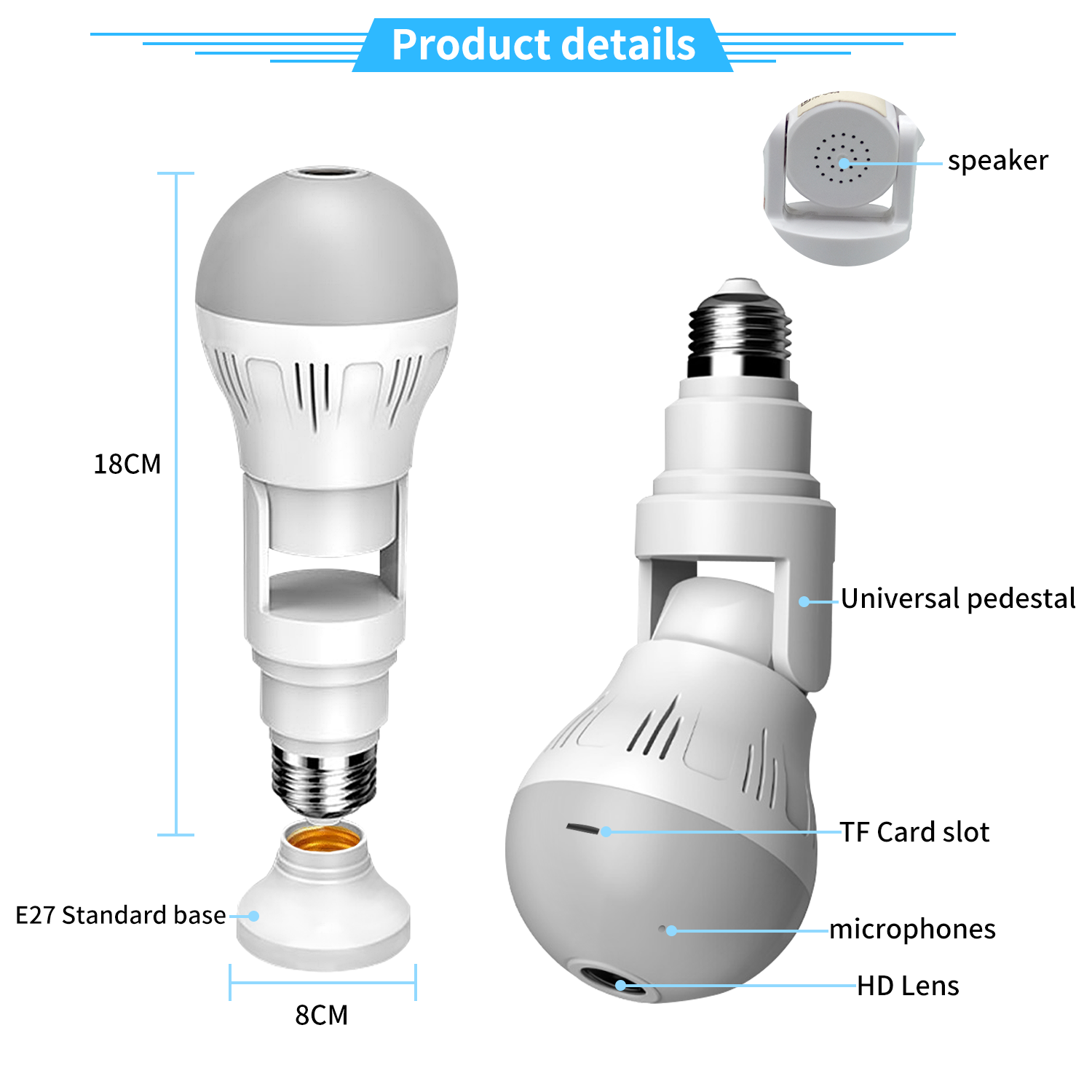

Standard E27 base

Power input:

110~220V

Work environment:

Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH
