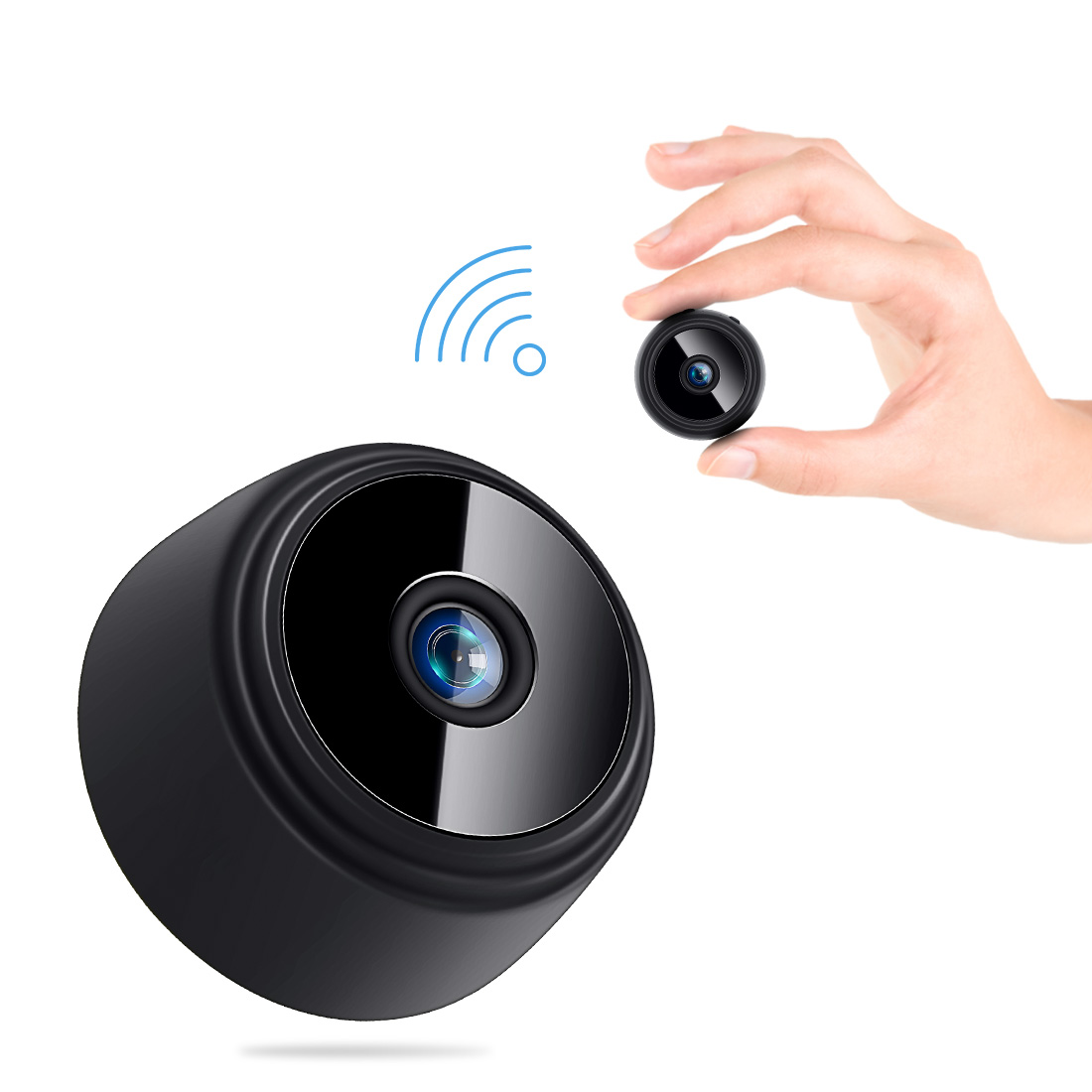

Battery camera
Publish time 2021-10-27 15:54
Model number | A9mini |
APP | V380 Pro |
Pixel | 1080P |
Sensor | SC1245+YB32 |
Lens | Focal length 2.6mm aperture F2.4 |
Resolution: | 1280*1080 |
Video frame rate | (Daytime, night vision, HD, Puqing):15fps |
Code stream: | H.264 |
View angle: | 81 degree |

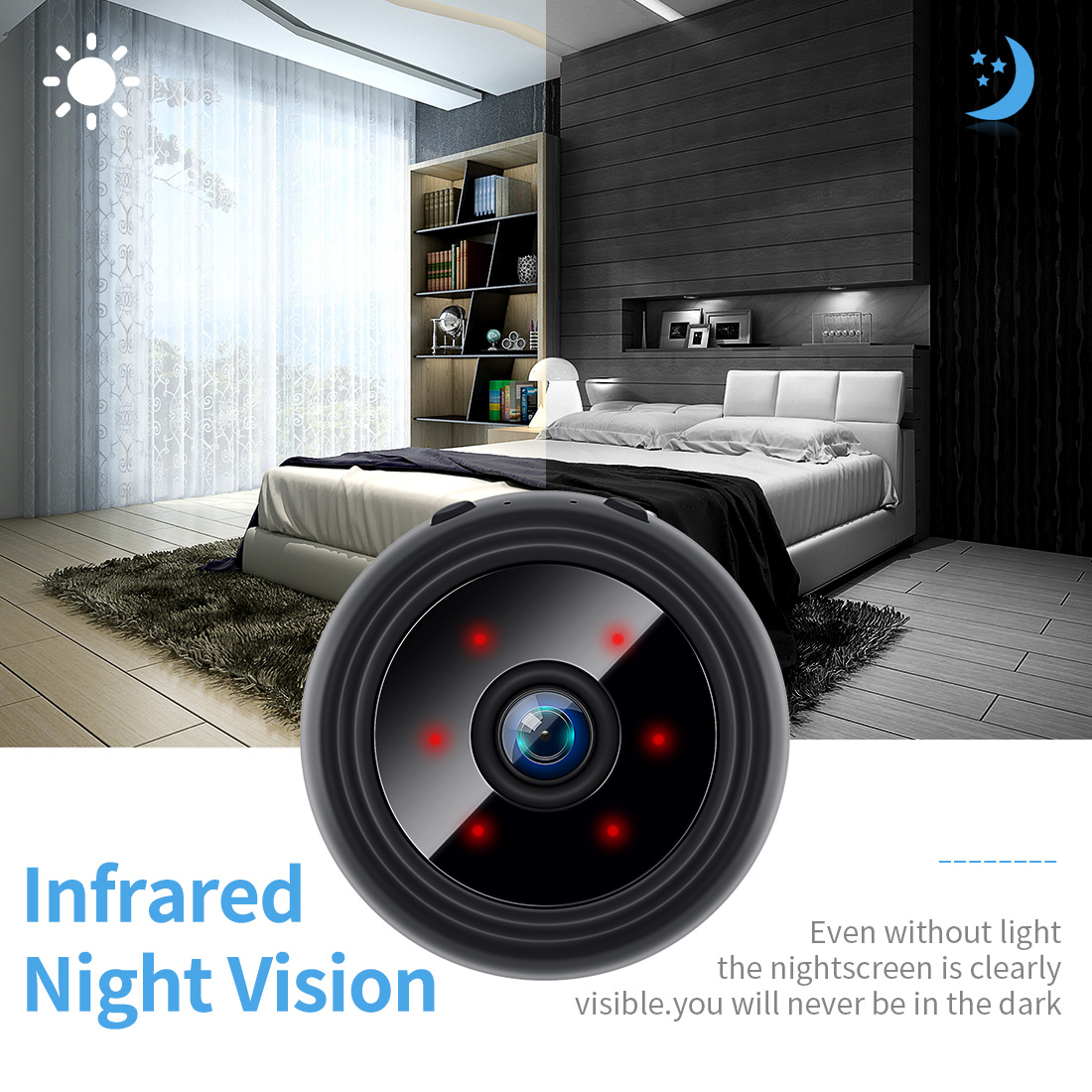

night vision distance: | 3~5m |
Infrared compensation: | 8pcs F5 infrared LED (940nm) |
WiFi Fixed frequency | 2.4G |
Loop recording function | yes |
Battery type | Lithium polymer 3.7V |
Battery capacity | 500mA |
Day mode recording time | about 2 hours 25℃ |
Power consumption of daytime video recording | about 230mah 3.7V |
Night vision mode recording time | about 1.3 hours 25℃ |
Night vision video power consumption | about 370mah 3.7V |
Recording distance | 3~5m |
Speaker | No |
WiFi Connection distance | ≥30m(Open without interference and obstruction) |
Point to point distance | ≥30m(Open without interference and obstruction) |
Video format | AVI |
Video memory per minute | 4-5MB |
Indicator type / Qty. | 3pcs LED (red yello blue ) |
USB | Mirco-USB |
Charging requirements (rated constant voltage current) | 5V、1A |
Supported systems, players | Windows、IOS、Android Storm video |
Memory card capacity | Support 128G max(FAT32 format is required) |
Product size | Diameter 82mm * height 119mm |
Packing size | Length 9.6 * width 9.8 * height 4cm |
Temperature | 5~40℃ |
Humidity | relative humidity 45%~85% |
