App.

V380 Pro

system structure:

Embedded Linux system,ARM chip structure

Chip.:

AK3918E

Resolution:

2.0MP

Sensor Resolution:

1/2.9"GC2063/SC2232H 1920x1080

Lens:

3.6MM

View angle:

75°

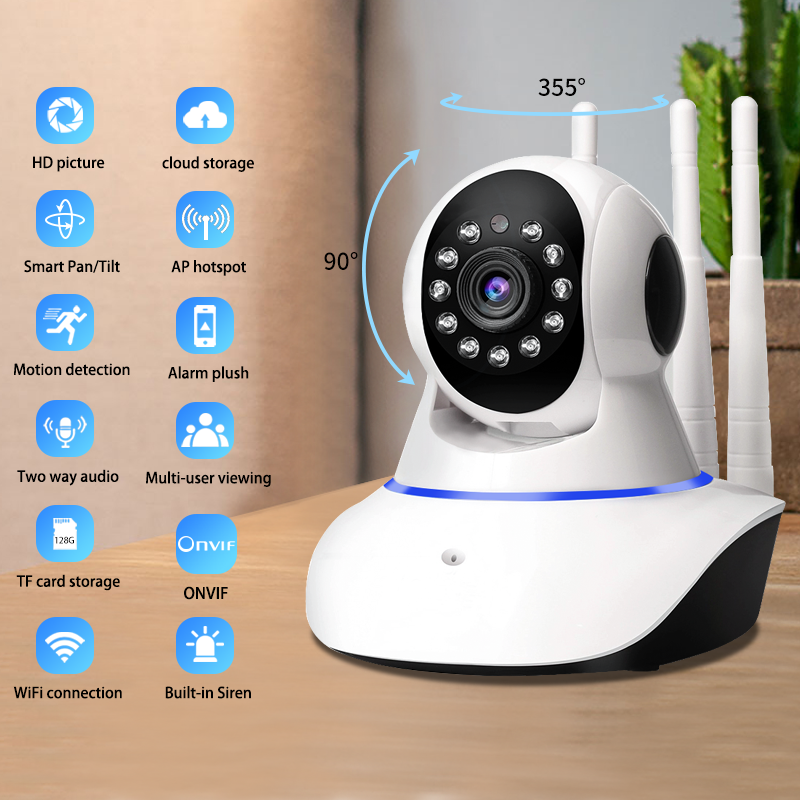

Pan-tilt:

Rotates Horizontal:355Vertical: 70°

Preset point quantity:

6 pcs

Video compression standar

H.265/20FPS

Minimum illumination: ]

0.02Lux@(F2.0， vGC ON),O.Luxwith lR

Electronic shutter:

Auto

Backlight compensation:

support

Noise reduction:

2D、3D

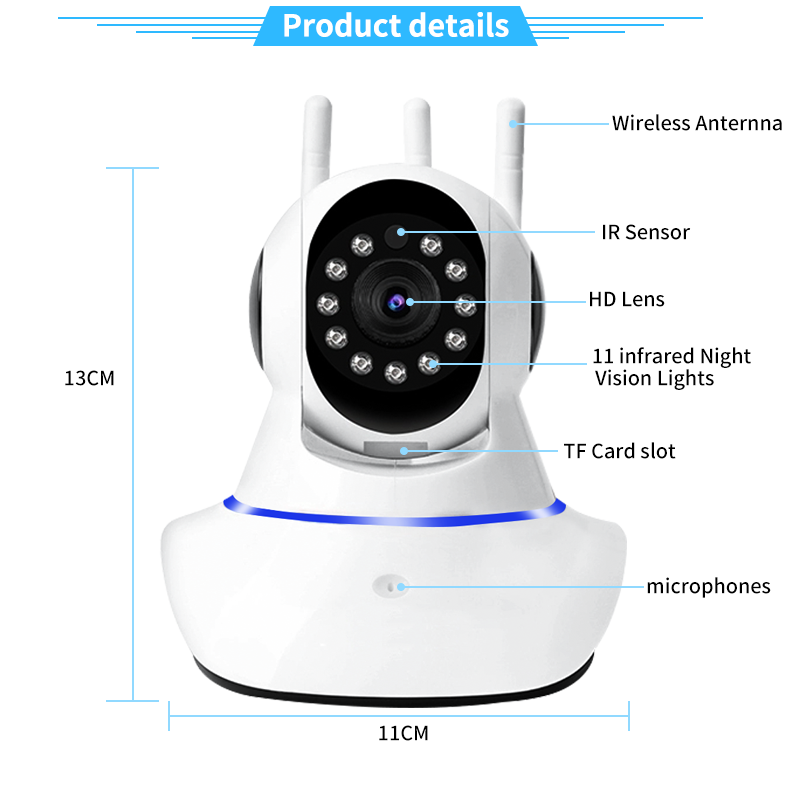

Led quantity:

11pcs Infrared LED

Network:

WIFl wireless transmission (support IEEE802.11blg'n wireless
protocol).Support AP hotspot, adapt to RJ45 Network port

Night wision

R-CUT switch Automatic，about 5-8meters (lt varies from enwironment)

Audio:

Built-in microphone and speaker,support two-way audio and real-time
transmission.
ADPCM audio compression standard, selfadapt to code stream

Network protocol:

TCPIP 、UDP、RTSP、HITP、DDNS .DHCP、FTP、NTP

Alarm:

1.Motion detection and picture push 2.Al Human intrusion Detection (

ONVIF

Support ONVIF

Storage:

TF Card ( Max 64G) ﹔ Cloud storage lCloud disk (optional)

Power input:

5V/1.6A

Work environment:

Working temperature:-10℃~+ 50℃ Working Humidity: ≤95%RH
