APP

V380 Pro

Pixel

1080P

Sensor

AK V300+2232H

Lens

Focal length 2.6mm aperture F2.4

Resolution:

1920*1080P

Video frame rate

（Daytime, night vision, HD, Puqing）：15 fps

PTZ Pan tilt angle adjustment

H.264

View angle:

90 degree

night vision distance:

3~5m

Infrared compensation:

6pcs SMT2835 chips infrared lamp (940nm)

WiFi Fixed frequency

2.4G RTL8188EUS

Loop recording function

yes

Battery type

Lithium polymer battery 3.7V

Battery capacity

500mA

Day mode recording time

about 1.4 hours 25℃

Power consumption of daytime video recording

about 355mah 3.7V

Night vision mode recording time

about 1.3 hours 25℃

Night vision video power consumption

about 360mah 3.7V

Recording distance

3~5m

Speaker

No

WiFi Connection distance

≥30m（Open without interference and obstruction）

Point to point distance

≥30m（Open without interference and obstruction）

Video format

AVI

Video memory per minute

4-5MB

Indicator type / Qty.

3 LED ( red, yello, blue )

USB port

Mirco-USB

Charging requirements (rated constant voltage current)

5V、1A (not including AC adapter)

Supported systems, players

Windows、IOS、Android. Storm video

Memory card capacity

Max:128G（format is required）

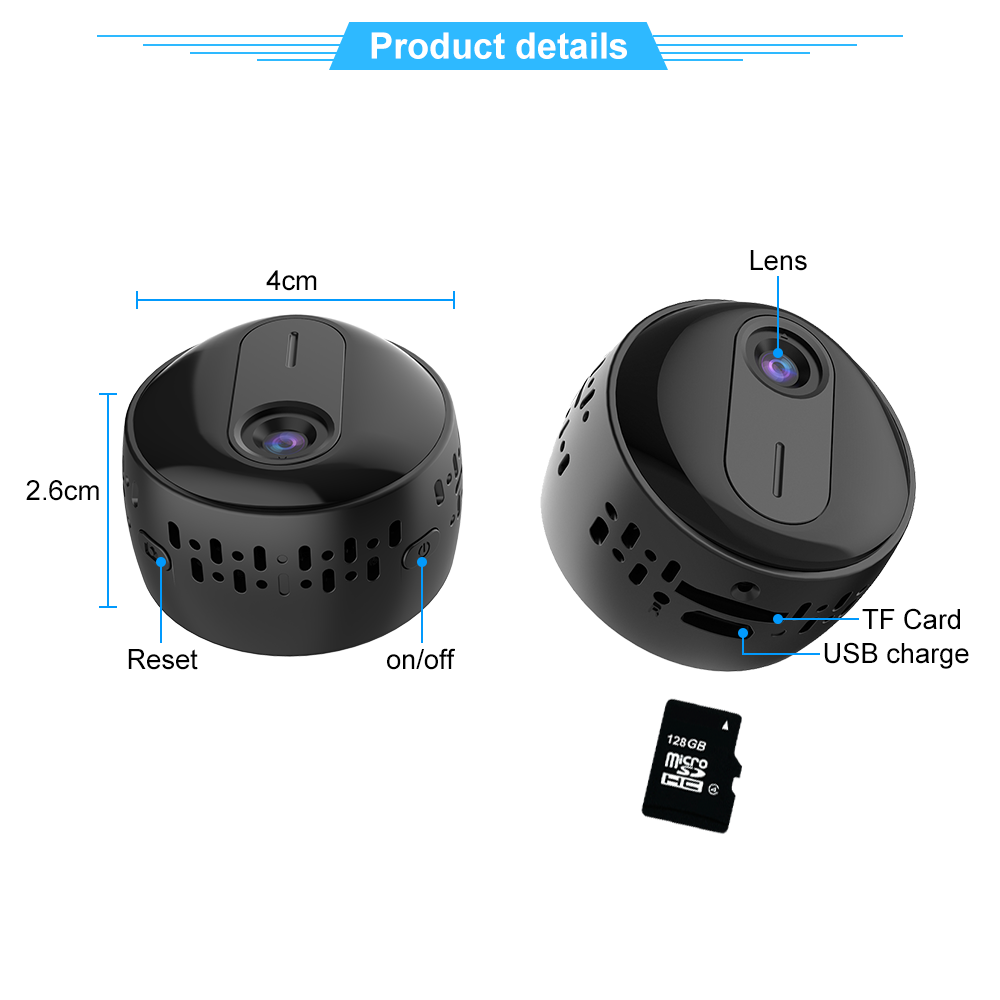

Product size

Diameter 40mm * height 26mm

Packing size

Length 10.5 * width 10.5 * height 4.5cm

Temperature

5~40℃

Humidity

relative humidity 45％~85％
