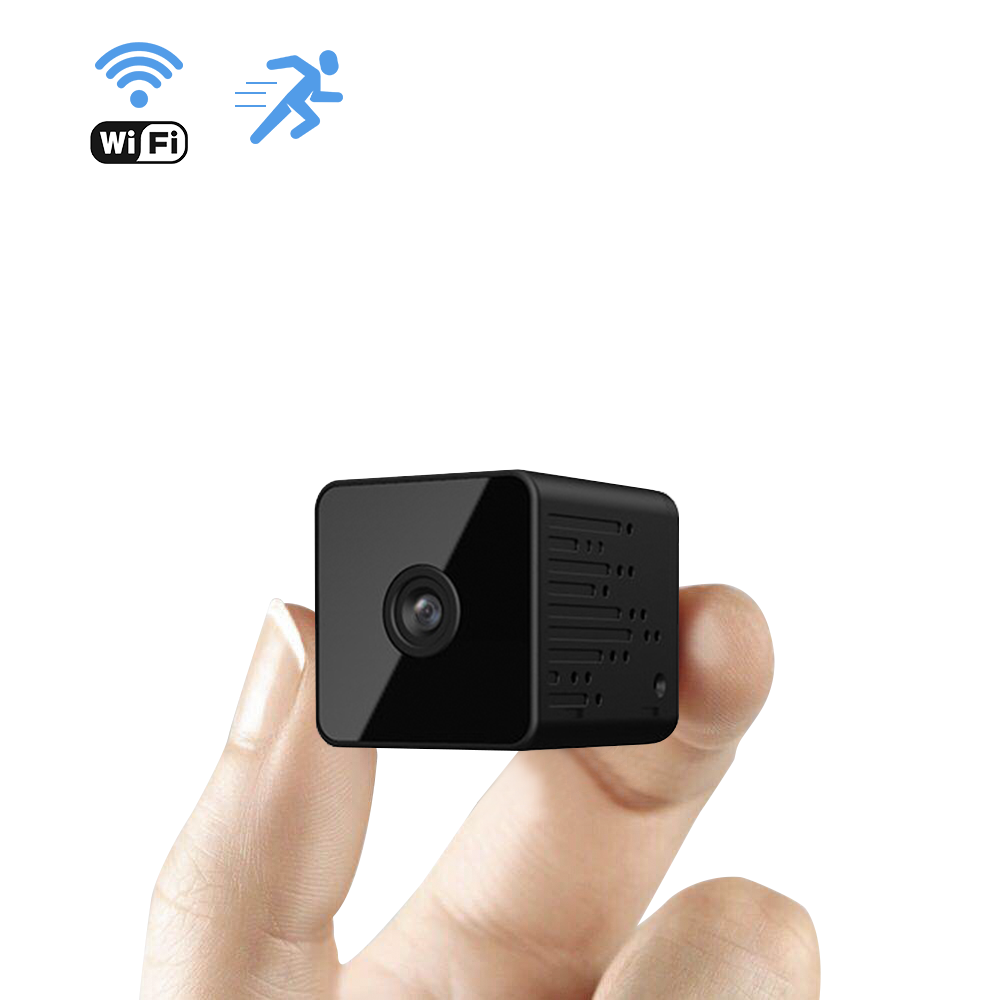

Battery camera
    Publish time 2021-10-27 16:51

Model number

VQ9H

APP

V380 Pro

Pixel

720P (1280*720P)

Sensor

SC1245+YB32

Lens

Focal length 2.6mm aperture F2.4

Resolution:

1280*720

Video frame rate

(Daytime, night vision, HD, Puqing):15fps

Code stream:

H.264

View angle:

81 degree

night vision distance:

3~5m

Infrared compensation:

8pcs F5 infrared LED (940nm)

WiFi Fixed frequency

2.4G

Loop recording function

yes

Battery type

Lithium polymer 3.7V

Battery capacity

500mA

Day mode recording time

about 2 hours 25℃

Power consumption of daytime video recording

about 230mah 3.7V

Night vision mode recording time

about 1.3 hours 25℃

Night vision video power consumption

about 370mah 3.7V

Recording distance

3~5m

Speaker

No

WiFi Connection distance

≥30m(Open without interference and obstruction)

Point to point distance

≥30m(Open without interference and obstruction)

Video format

AVI

Video memory per minute

4-5MB

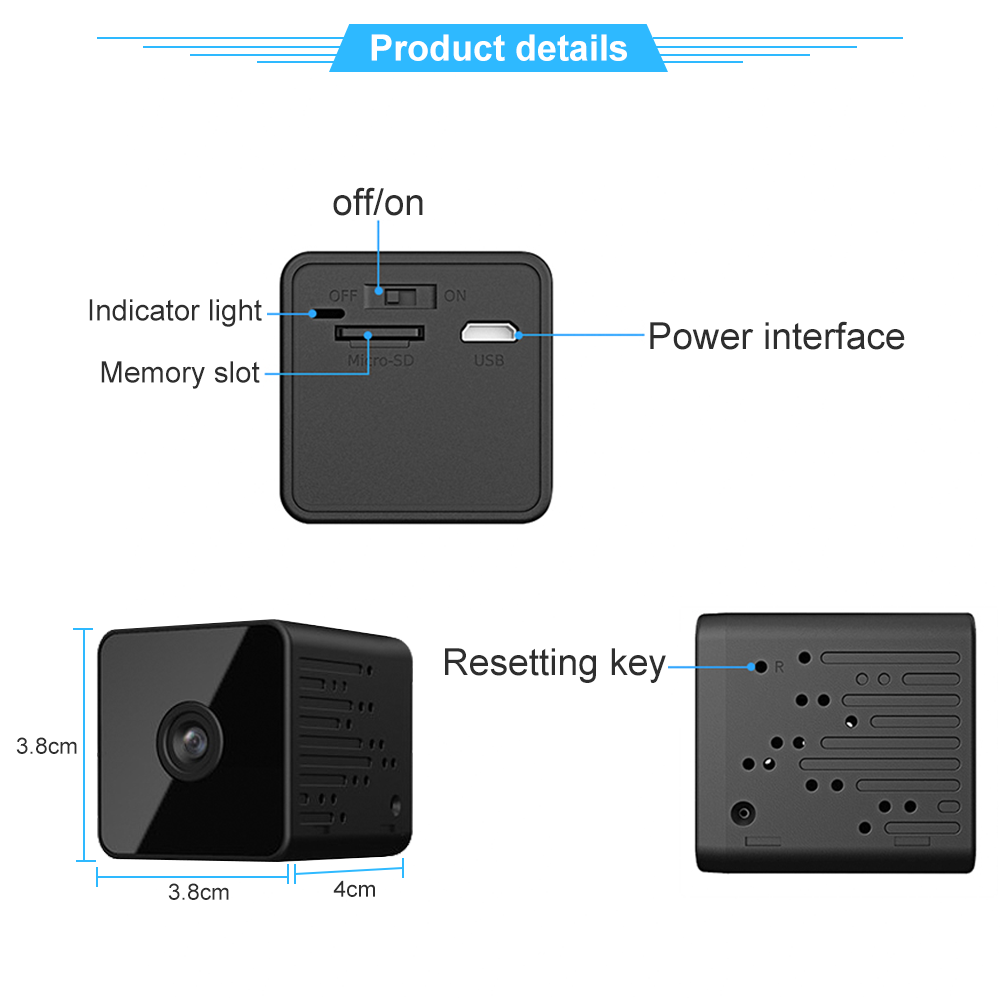

Indicator type / Qty.

3pcs LED (red yello blue )

USB

Mirco-USB

Charging requirements (rated constant voltage current)

5V、1A

Supported systems, players

Windows、IOS、Android Storm video

Memory card capacity

Support 128G max(FAT32 format is required)

Product size

Diameter 82mm * height 119mm

Packing size

Length 9.6 * width 9.8 * height 4cm

Temperature

5~40℃

Humidity

relative humidity 45%~85%
